PSoC5LP Lab 01: Switch and LED Control without C Code

Objective

• Understand how to configure and control hardware resources within the PSoC 5LP device using the design tool.
• Implement basic digital input/output functionality (button and LED control) through the PSoC Creator software.
• Observe internal hardware routing to achieve functionality without writing C code.

Overview

The PSoC 5LP (Programmable System-on-Chip) is a flexible and powerful microcontroller architecture from Cypress Semiconductor, combining a CPU with configurable analog and digital blocks. Its unique internal hardware routing allows complex digital and analog functions to be implemented without CPU intervention or traditional C code.

This makes it ideal for applications where reduced CPU load or low-power operation is critical. The PSoC's programmable nature also simplifies designs by integrating multiple functions (like timers, PWM, and logic gates) into a single chip.

In this lab, users explore controlling an LED via a button without needing any C code, leveraging PSoC Creator’s graphical interface. This exercise introduces the fundamental concepts of using PSoC's digital input/output pins, internal routing, and basic peripheral configuration. The goal is to demonstrate how configurable logic inside the PSoC allows hardware components to communicate without relying on the CPU, which helps create efficient, low-latency systems.

The flexible pin assignments and routing paths are critical, allowing the same chip to be used in various applications without additional components. This lab also highlights how using schematics and the Pin Assignment tool in PSoC Creator helps manage the I/O pins and internal configurations.

Required Reading Material

• Lesson KB 01: Create a PSoC Project using PSoC Creator
• PSoC Creator

Required Components

If you use the Cypress CY8CKIT-059 Kit, the onboard LED and button will be used in this lab.

The following components are required for this lab.

	Push Button (Optional, can use onboard components)	x 1
	Resistor 200ohm (if using an external LED)	x 1
	Red LED (or onboard LED)	x 1

Circuit / Schematic

Procedure

Creating a New Project

1. Launch PSoC Creator.
2. Go to File ➤ New ➤ Projects….

3. Select the correct PSoC5L microcontroller chip number.

   • If you are using PSoC Creator for the first time or working with a different PSoC board than before, select Launch Device Selector to choose the appropriate PSoC5LP chip model.

   For CY8CKIT-059 Kit: CY8C5888LTI-LP97 device.
   PSoC Creator will remember the last PSoC CPU model number you used. If you use the same type of PSoC board, then you can select it.

4. Click next after selecting the CPU model number. Select Empty Schematic, then click Next.
5. Edit the name of the Project and Workspace.


Adding PSoC Creator Components

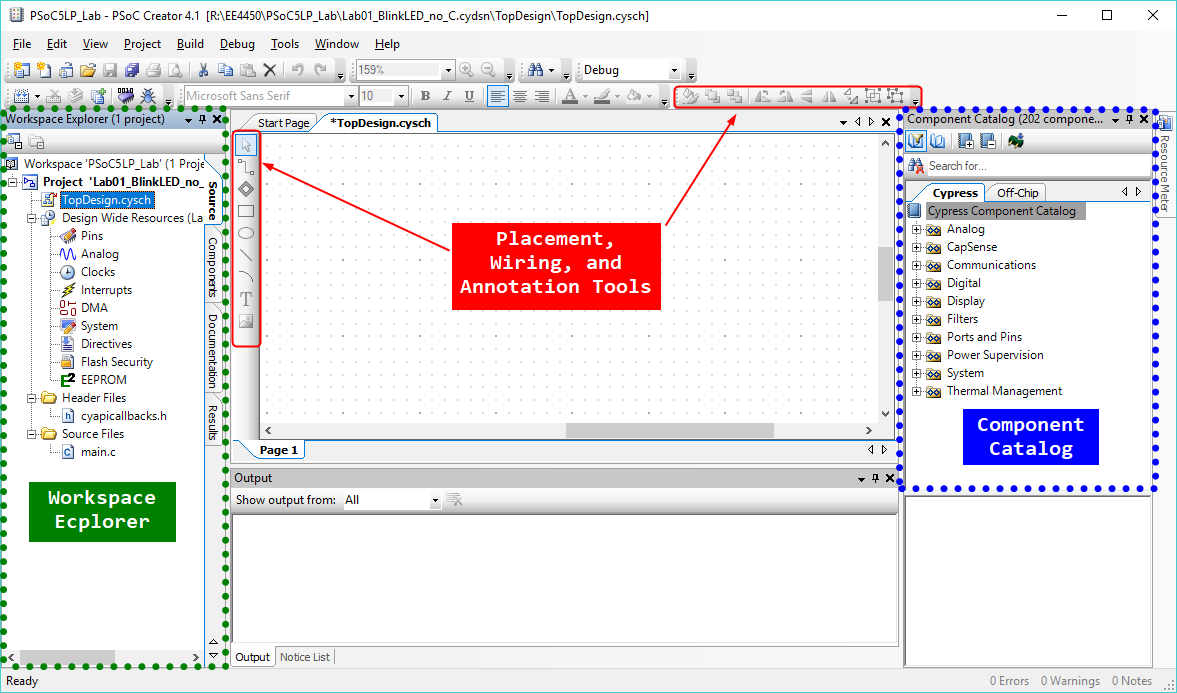

After you create a project, the PSoC Creator will bring up the TopDesign.cysch tab, with an empty schematic. You need to add some of the components to the TopDesign.cysch. On the right side of the PSoC Creator window, you can see a tree-structure panel called the "Component Catalog", which has Cypress and Off-Chip tabs for component selection.

Adding Components:

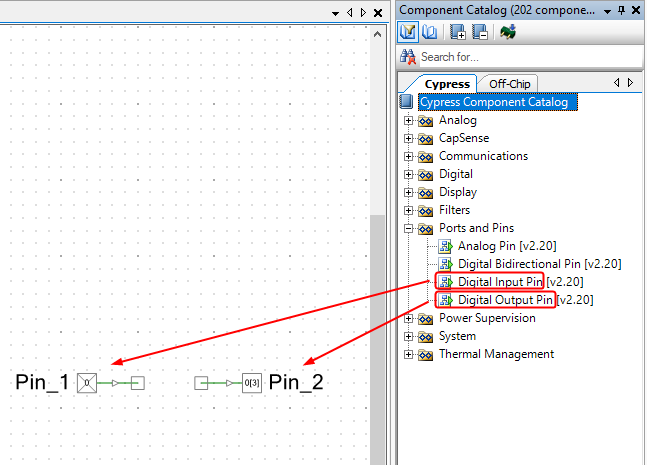

• Select Digital Input Pin and Digital Output Pin from the Ports and Pins catalog under the Cypress tab.
• Drag the components to the schematic as shown on the following diagram:
  • Place input components (like switches) on the left.
  • Place output components (like LEDs) on the right.

When you drag the components to the schematic, always place Input components on the left-hand side, and Output components on the right-hand side.

Configure the Components

In your next step, you will need to configure these components.

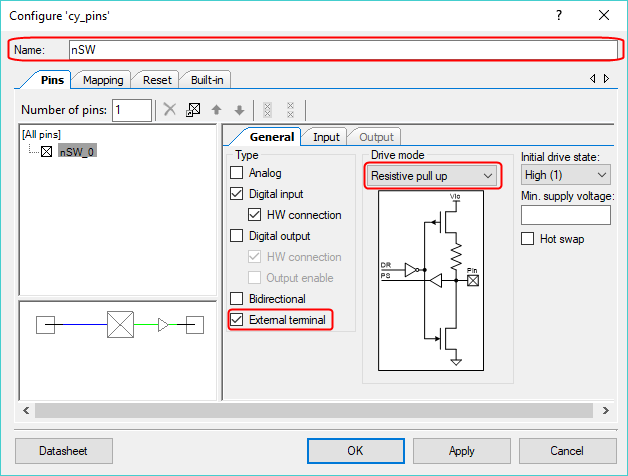

1. Double-click on the Pin_1 component, the input pin. You will get the component configuration window, where you can set all various parameters that define the part at the build time.
   • Change the component name to nSW.
   • Select the External terminal checkbox to show the terminal pin and enable the connections to Off-Chip Components in the schematic.
   • Change Drive mode to Resistive pull up.

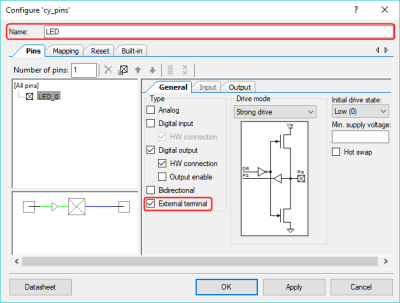

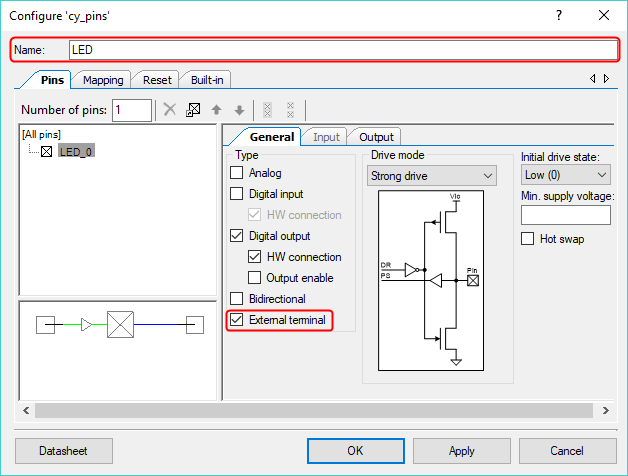

2. Perform an identical procedure for the output pin, but leave the drive mode with its default setting. Double-click on the Pin_2 component, the output pin.
   • Change the component name to LED.
   • Select the External terminal checkbox to show the terminal pin.


Wiring

In this lab, we want to turn on the LED by pressing the push button, so you need to make a wire connection between the input and output components.

• Signal-click on the Wire Tools button to draw one wire connection.
• Double-click on the schematic to start or end a wire drawing process.
• Double-click on the Wire Tools button to draw multiple wires at once.
• Press the [ESC] key to quit drawing wires.

Drawing External Circuit on the Schematic

Drawing the complete external circuit on the schematic will help you quickly understand input and output signals.

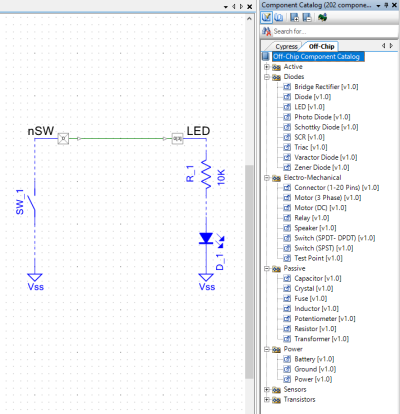

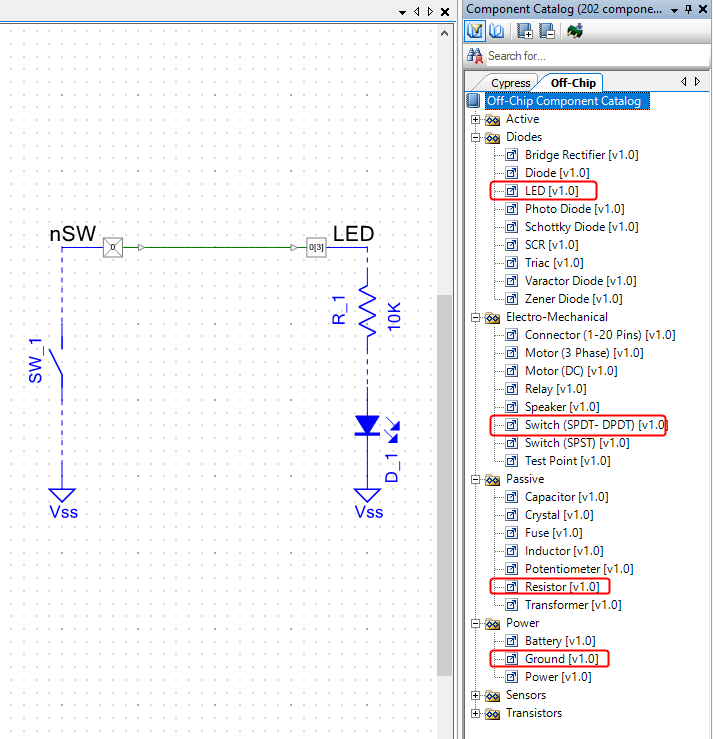

Change to the Off-Chip tab on the Component Catalog panel, then drag external components to your schematic, as shown in the following diagram.

The schematic representation of Vss (Ground), 10K Resistor R_1, LED D_1, and Switch (SPST) SW_1 is just 'visual aids', These visual aids are:

• available in the Off-Chip library component tab
• show in blue

These components are not considered in the PSoC programming stage; All components shown in blue are not used when the build is involved.

The Green wires are digital connections. They connect the components through the internal routing path to transmit the signals.
The Blue wires and Blue components are off-chip documentation components. They are used to illustrate circuitry external to PSoC devices only. It can help you and other engineers to understand the circuit quickly, but they are not used for building the project.

Pin Assignment

• PSoC 5LP Prototyping Kit Pin Details

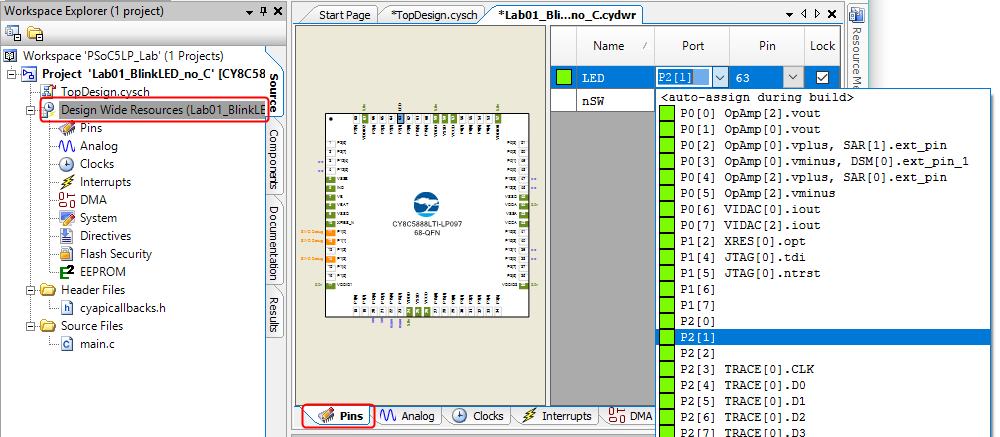

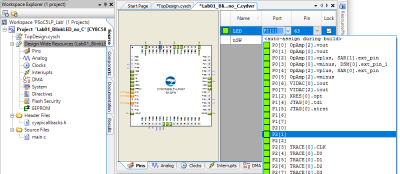

Before building the code, the last thing to do is assign these logical pins to a physical pin on the PSoC 5LP device. To do this, open the Design Wide Resources file (.cydwr) from the Workspace Explorer on the left side of the window. You will get a similar pin assignment window as shown in the following figure:

On the right side, there is a list of pin objects, port pins, and physical PINs. If you do not assign a pin to a physical port, the PSoC Creator will do it. In this Lab, the LED is connected to port 2, pin1, and the push button is attached to port 2, pin2. So, you have to assign P2[1] to LED and P2[2] to nSW.

Building the code and Programming

No additional software is needed in main.c for this experiment. Therefore, you can build the project using the Build menu or  Build icon. The Output panel shows the build results. Any errors will stop the build process and messages identifying these problems will be displayed in the Output panel.

To program the PSoC with the newly built firmware, connect the PSoC board to the PC using the USB cable. Load the program using either the Debug➤Program selection or the following  Program icon. The programming status is also shown in the Output panel.

When programmed, you can press the push button and observe the status of the LED.

Exercises

Questions

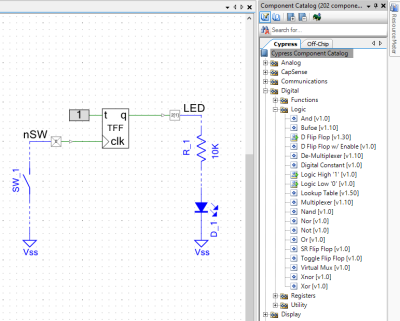

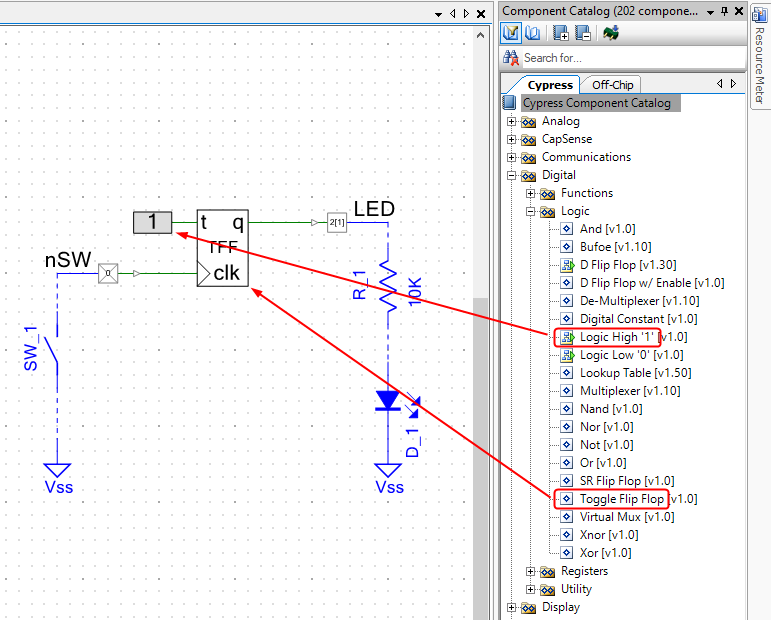

1. Is the LED on when the button is pressed and off when it is released? If not, can you just add one more component from the Component Catalog to the Schematic file in the PSoC Creator without changing any physical hardware outside the device? Explain.
2. Why the Drive mode in nSW (Digital Input Pin) must be Resistive Pull Up? Change the Drive mode to High Impedance Digital, then program the PSoC and see what happens. Explain.
3. Most microcontrollers do not have configurable routing paths to connect internal components. How can this lab be implemented in these MCUs? Show your solutions using the Flowchart or pseudocode on the report.
