Lesson 00: General Requirements for FPGA Laboratories

Hello, welcome to the world of Embedded Systems.

In this section, you will learn about FPGA design using the Intel MAX-10 FPGA board. Therefore, I recommend you download and install the development software on your computer in order to practice in your free time.

You must have an FPGA development board. In this lecture, I recommend you to get the Terasic DE-10 Lite board.

Terasic DE-10 Lite

Terasic DE-10 Lite is a cost-effective Intel MAX-10 based FPGA board. This board has many features that allow users to implement a wide range of designed circuits, from simple circuits to various multimedia projects.

de10 lite 45 s

  • Intel MAX-10 10M50DAF484C7G chip
  • Integrated dual ADCs, each ADC supports 1 dedicated analog input and 8 dual function pins
  • 50K programmable logic elements
  • 1,638 Kbit M9K Memory
  • 144 18x18 Multiplier
  • 4 PLLs
  • On-board USB blaster
  • 64MB SDRAM, x16 bits data bus

Sensor

  • Accelerometer

Expansion Connectors

  • On 2x20 GPIO Connector (Voltage levels: 3.3V)
  • Arduino Uno R3 Connector, including 6 ADC channels

Display

  • 4-bit Resistor VGA

Switches/Buttons/LEDs/7-Segment Display

  • 10 LEDs
  • 10 Slide Switches
  • 2 Push Buttons
  • Six 7-Segment Display

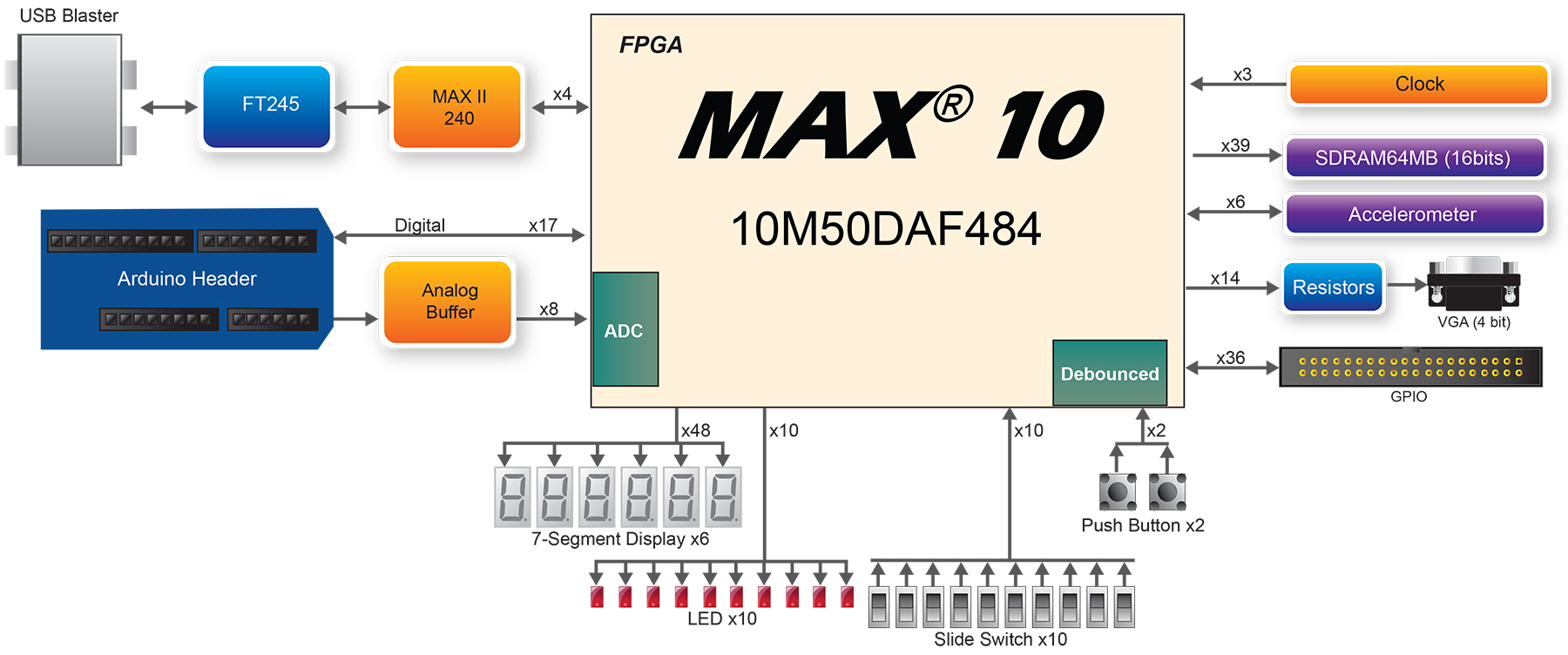

DE 10Lite BlockDiagram s
