**Lab 05: Oscilloscope Operation**

**Objectives**

- To become familiar with using an oscilloscope and function generator.
- To measure phase angle using Lissajous polar.

**Equipment**

**Background**

**Oscilloscope**

The oscilloscope is a device that displays a graph of voltage vs. time (voltage on the vertical axis, time on the horizontal axis). If the voltage is DC, that is, constant in time, then the oscilloscope display is a horizontal line, whose vertical position indicates the voltage.

The oscilloscope screen has 1 cm divisions on both axes. There is a volts per division (volts/div) knob, which sets the vertical (volts) scale and a seconds per division (sec/div) knob which sets the horizontal (time) scale. There are knobs for setting the vertical and horizontal position of the display.

Under the volts/div knob is a 3-position switch that reads (AC - ground - DC).

- In the ground position, the input to the oscilloscope is grounded (set to 0 volts), and the display becomes a horizontal line whose position (which can be adjusted with the vertical position knob) is the zero volts position. For instance, one could set the middle line of the screen to be 0 volts. Then positions above the middle would be positive voltages, and positions below the middle would be negative voltages.
- When the switch is in the DC position, the signal is input to the oscilloscope unaltered.
- When the switch is in the AC position, an internal capacitor is in series with the input to the oscilloscope, and the DC component of the signal is removed.

**Lissajous Figures**

Lissajous (pronounced "LEE-suh-zhoo") figure is a parametric plot of the harmonic system. Lissajous figures displayed on an oscilloscope can be used to give a quick estimate of the relative phase and the frequency of two signals.

**X-Y Display Mode**

Lissajous figures can be obtained with an oscilloscope when it is operated in X-Y display mode. The X-Y display mode converts the oscilloscope from a volts-versus-time display to a volts-versus-volts display using two input channels. Channel 1 is the Y-axis input, and channel 2 is X-axis input.

**Procedure**

#### Exp #1: X-Y Display

For this experiment, you need two function generators. So, you will need to cooperate with a neighboring team to share their function generator.

**Setup the connections**

- On the oscilloscope, check the prob attenuation to "
**1X**' on both channels. Set up the oscilloscope for an X-Y display mode, and adjust the amplitude per division set to**1.00 V/Div**on both channels () - Connect the first function generator to the channel 1 input of the oscilloscope, and second function generator to channel 2. Channel 1 will be displayed on the Y-axis, and channel 2 will be displayed on the X-axis.
- Set the frequency of the second function generator to 100 Hz, 0 V DC offset, and out voltage level to give a peak-to-peak voltage of 6 V. (Confirm the voltage value on the oscilloscope screen).

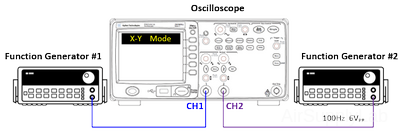

**Figure 1**: Two Function Generators and Oscilloscope

**Exp 5-1: Display a Circle on the Oscilloscope Screen**

- Adjust both Function Generators to produce a
**circle**on the screen with a diameter of 6 V. Sketch and dimension the display and record the Function Generator settings

Table 1: Function Generator Setting for Exp 5-1 (Circle)

**Figure 2**: A Circle on the Screen

**Exp 5-2: Display an Ellipse on the Oscilloscope Screen**

- Adjust both Function Generators to produce an
**ellipse**on the screen with a major axis (X-axis) of 6 V and a minor axis (Y-axis) of 2 V. Sketch and dimension the display and record the Function Generator settings.

Table 2: Function Generator Setting for Exp 5-2 (Ellipse)

**Figure 3**: An Ellipse on the Screen

**Exp 5-3: Display a Diamond-Shaped 1 on the Oscilloscope Screen**

- Adjust both Function Generators to produce a
**diamond-shaped figure**on the screen with a major axis (X-axis) of 6 V and a minor axis (Y-axis) of 6 V. Sketch and dimension the display and record the Function Generator settings.

Table 3: Function Generator Setting for Exp 5-3 (Diamond-Shaped)

**Figure 4**: A Diamond-Shaped on the Screen

**Exp 5-4: Display a Diamond-Shaped 2 on the Oscilloscope Screen**

- Adjust both Function Generators to produce a
**diamond-shaped figure**on the screen with a major axis (X-axis) of 6 V and a minor axis (Y-axis) of 2 V. Sketch and dimension the display and record the Function Generator settings.

Table 4: Function Generator Setting for Exp 5-4 (Diamond-Shaped)

**Figure 5**: A Diamond-Shaped on the Screen

**Exp 5-5: Display a Diamond-Shaped 3 on the Oscilloscope Screen**

- Adjust both Function Generators to produce a
**diamond-shaped figure**on the screen with a major axis (X-axis) of 2 V and a minor axis (Y-axis) of 6 V. Sketch and dimension the display and record the Function Generator settings.

Table 5: Function Generator Setting for Exp 5-5 (Diamond-Shaped)

**Figure 6**: A Diamond-Shaped on the Screen

**Exp 5-6: Display a Pattern of Dots on the Oscilloscope Screen**

- Adjust both Function Generators to produce
**a pattern of dots**on the screen with a spacing of 4 V between dots in both directions. Sketch and dimension the display and record the Function Generator settings.

Table 6: Function Generator Setting for Exp 5-6 (Dots)

**Figure 7**: Dots on the Screen

**Exp 5-7: Display "Figure 8" on the Oscilloscope Screen**

- Adjust both Function Generators to produce a "
**figure 8**" pattern on the screen with the "figure 8" being 6 V high and 4 V wide. Sketch and dimension the display and record the function Generator settings.

Table 7: Function Generator Setting for Exp 5-6 (Figure 8)

**Figure 8**: "Figure 8" on the Screen

**Exp 5-8: Display "Figure ∞" on the Oscilloscope Screen**

- Adjust both Function Generators to produce a "
**figure ∞**" pattern on the screen with the "figure ∞" being 4 V high and 8 V wide. Sketch and dimension the display and record the Function Generator settings.

Table 8: Function Generator Setting for Exp 5-6 (Figure ∞)

**Figure 9**: "Figure ∞" on the Screen

#### Exp #2: Oscilloscope Dual Channel Display

**Setup the connection**

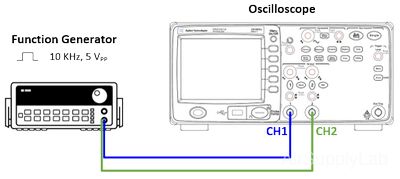

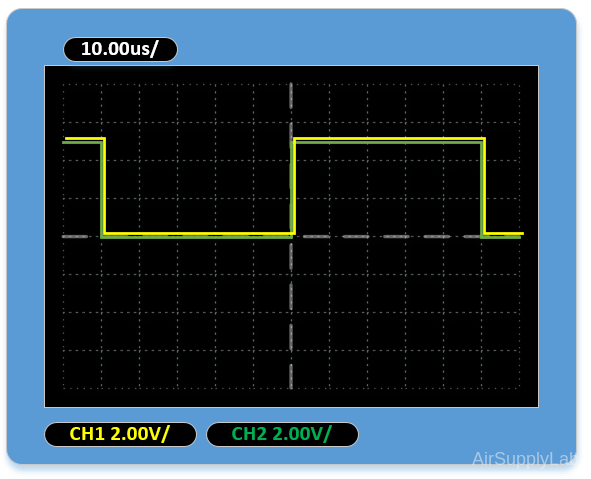

- Connect a Function Generator to both the CH 1 and CH 2 Input terminals of the oscilloscope. Set input coupling switches to DC for both channels. Set the Function Generator to give a
**SQUARE WAVE**output voltage waveform with a peak-to-peak amplitude of**5 V**and a frequency of**10 kHz**. The oscilloscope sweep speed should be set to**10.00 μs/DIV**.**Adjust the vertical controls of both channels such that the two displays overlap exactly.**

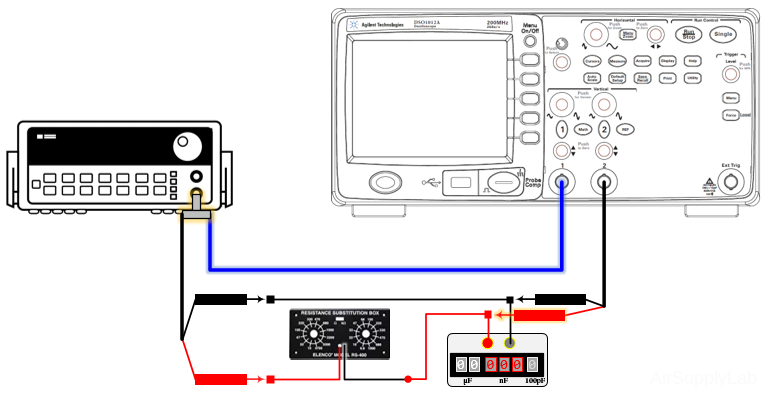

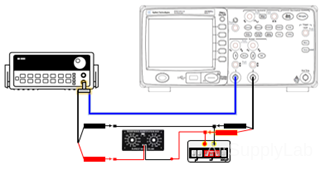

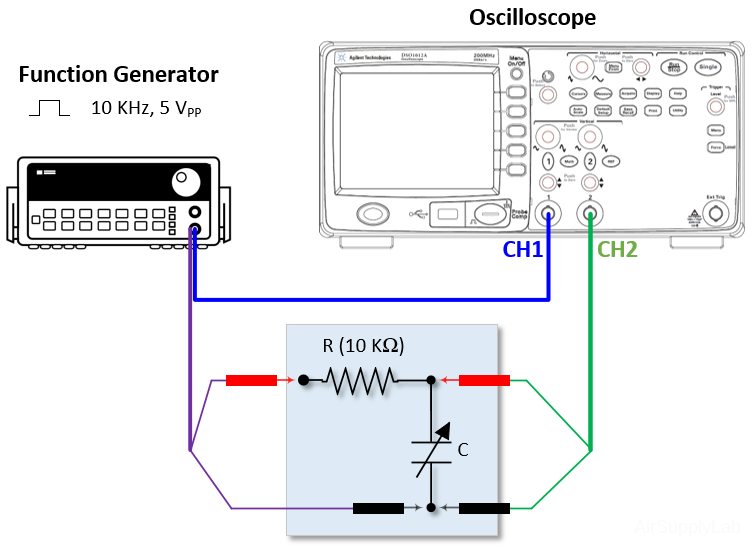

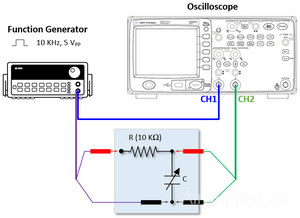

**Figure 10**: Connection - Now insert an R-C low-pass network between the Function Generator and the CH 2 input of the oscilloscope. The RC network consists of a Resistance Substitution Box (
) and a Decade Capacitor Box, Type CDA (*R*_{1}) as shown in the diagram below. Start off with the resistance set to 10 KΩ and the capacitance set to zero. The input-voltage of the R-C network is displayed on CH 1 and the output voltage will be displayed by CH 2.*C*_{1}

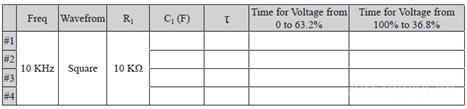

**Exp 5-9: Calculate R-C Time Constant (τ)**

Square Wave: 10 KHz, **V**_{PP}: 5 V, **R**_{1}: 10 KΩ, C_{1}: Vary

Square Wave: 10 KHz,

**V**

_{PP}: 5 V,_{1}: 10 KΩ, C

_{1}: Vary

- Increase the capacitance and observe the results on the oscilloscope. Find the time it takes the output voltage to go from zero to 63.2% of the input voltage for four different values of capacitance. Decrease the frequency as necessary to display the full transient response curve. Compare the zero to 63.2% rise time with the R-C time constant (i.e. the R-C product). Repeat this procedure for the 100% to 36.8% fall time.

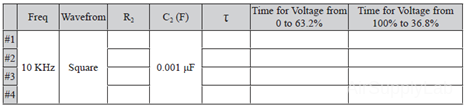

**Exp 5-10: Calculate R-C Time Constant (τ)**

Square Wave: 10 KHz, V_{PP}: 5 V, R_{2}: Very, C_{2}: 1 nF

Square Wave: 10 KHz, V

_{PP}: 5 V, R

_{2}: Very, C

_{2}: 1 nF

- Set the resistance to zero and the capacitance to
**1 nF**(**0.001 μF**). Now increase the resistance and observe the results on the oscilloscope. Decrease the frequency as necessary to display the full transient response curve. Find the time it takes the output voltage to go from zero to 63.2% of the input voltage for four different values of resistance. Compare the**zero to 63.2%**rise time with the R-C time constant. Repeat this procedure for the 100% to 36.8% fall time.

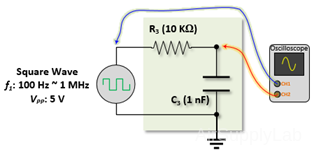

**Exp 5-11: Calculate R-C Time Constant (τ)**

Square Wave: 100 Hz ~ 1 MHz, V_{PP}: 5 V, R_{3}: 10 KΩ, C_{3}: 1 nF

Square Wave: 100 Hz ~ 1 MHz, V

_{PP}: 5 V, R

_{3}: 10 KΩ, C

_{3}: 1 nF

- Set the resistance to 10 KΩ and the capacitance to 0.001 μF. vary the frequency of the Function Generator from about 100 Hz to about 1 MHz and observe the results. Find the frequency at which the output voltage reaches only 10% of the input voltage. Under these conditions, the pulse width should be approximately equal to 1/10 of the R-C time constant. Compare the time constant to the pulse width.

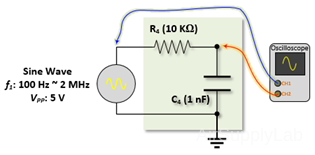

**Exp 5-12: Calculate Phase Angle (ø)**

Sine Wave: 100 ~ 2 MHz, V_{PP}: 5 V, R_{3}: 10 KΩ, C_{3}: 1 nF

Sine Wave: 100 ~ 2 MHz, V

_{PP}: 5 V, R

_{3}: 10 KΩ, C

_{3}: 1 nF

- Set the Function Generator to produce a
**SINE WAVE**output. Setto 10 KΩ and*R*_{1}to 0.001 μF. vary the frequency of the Function Generator from about 100 Hz up to about 2 MHz and compare the input and output waveforms.*C*_{1} - Find the frequency at which the output voltage has decreased to 70.71 % of the input voltage. Find the phase angle between the output and input waveforms at this frequency. Compare the frequency and phase angle with the expected values. Repeat this procedure for the frequency at which the output voltage has decreased to 50% of the input voltage, and then for the frequency at which the output voltage is only 10% of the input voltage.

**Questions**

For most electronic systems the relationship between the 3 dB bandwidth (BW) and the rise time (10% to 90%) is given approximately by ** RISE_TIME x BW =0.35**.

Note: If a signal passes through several systems in series, (i.e. cascaded) the rise time at the output is given approximately as the square root of the sum of the squares of the rise times of the individual systems.

- An oscilloscope has a 35 MHz BW. Find the apparent rise time of the oscilloscope display if the signal input to the oscilloscope is an ideal pulse waveform.
- An oscilloscope has a 35 MHz BW. The oscilloscope is connected directly to a Pulse Generator and the oscilloscope display shows a rise time of 15 ns. Find the rise time of the Pulse Generator output.
- A Pulse Generator produces a pulse waveform output with a 10 ns rise time. After the pulse signal has passed through some electronic system it is displayed on the screen of a 35 MHz oscilloscope. The oscilloscope display shows a rise time of 25 ns. Find the rise time and the 3 dB BW of the electronic system.
- The input voltage of a system is displayed on CH 1 of an oscilloscope and the output voltage is displayed on CH 2. Both waveforms are sinusoidal with a period of 1 ms. The CH 2 waveform lags behind the CH 1 waveform by 0.1 ms. Find the phase shift produced by the system under study. Express the answer in degrees and in radians.

**Why Rise Time and Bandwidth's Product is 0.35?**

This is how it works: A simple R-C circuit can derive the bandwidth and rise time relationship:

- The time constant will be \(\tau = RC\). The bandwidth is \(BW = \frac{1}{{2\pi \tau }} = \frac{1}{{2\pi RC}}\)

Rise time is the time measured from*V*_{out,90%}- V_{out,10%}. The response for an RC network is*V*_{out}= V_{in}(1 – e^{-t/τ}) - For
, we can get**V**_{out}(t) = 0.1 V_{in}

\(0.1{V_{in}} = {V_{in}}(1 - {e^{\frac{{ - {t_{10\% }}}}{\tau }}})\)

whereis the time when the voltage reaches 10% of the final value.*t*_{10%} - After simplification:

\(0.9 = {e^{\frac{{ - {t_{10\% }}}}{\tau }}}\)

Applying the natural log to the above equation, we can get:

\(\ln (0.9) = \frac{{ - {t_{10\% }}}}{\tau } \Rightarrow {t_{10\% }} = - \tau \times \ln (0.9)\)

Similarly, for, we can have*V*_{out}(t) = 0.9 V_{in}

\({t_{90\% }} = - \tau \times \ln (0.1)\) - The rise time is then:

\({t_{RiseTime}} = {t_{90\% }} - {t_{10\% }} = \tau \times (\ln 0.9 - \ln 0.1) \simeq 2.2\tau \Rightarrow \tau = \frac{{{t_{RiseTime}}}}{{2.2}}\) - Substitute the above value of
into the expression for bandwidth:*τ*

\(BW = \frac{1}{{2\pi \tau }} = \frac{{2.2}}{{2\pi \times {t_{RiseTime}}}} = \frac{{0.35}}{{{t_{RiseTime}}}} \Rightarrow {t_{RiseTime}} \times BW = 0.35\)
